Product Overview

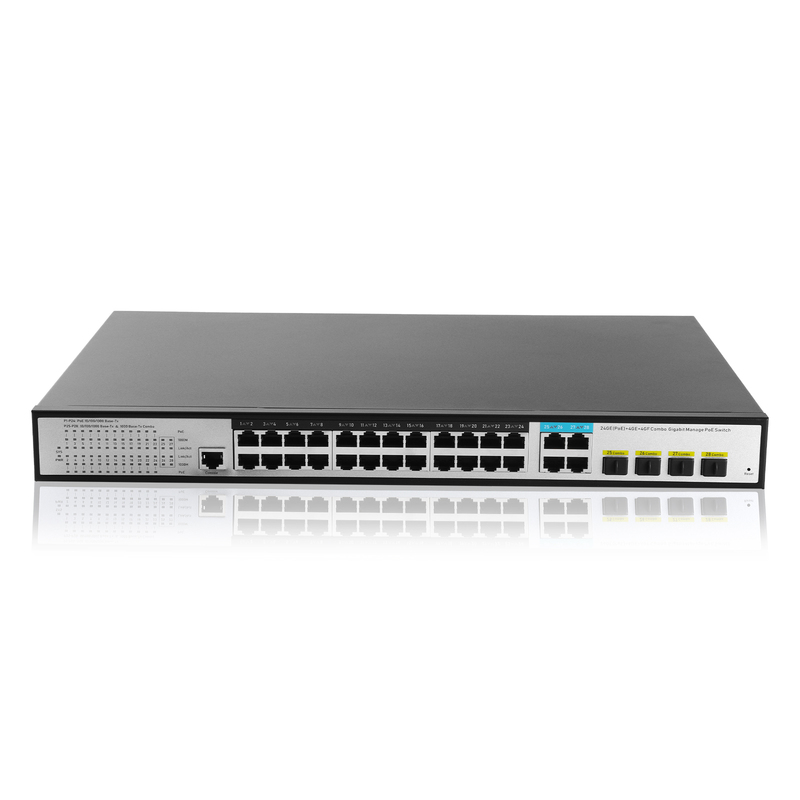

TheJXCSW28GE4GFPM is a full Gigabit Layer 2+ Managed PoE switch, equipped with 24 Gigabit Ethernet ports + 4 Gigabit combo ports (4 fiber + 4 copper). Ports 1-24 support IEEE 802.3af/at standard PoE/PoE+ power supply, with a single port PoE power up to 30W. All service ports of theJXCSW28GE4GFPM support 4KV surge lightning protection. As a PoE power sourcing equipment (PSE), it can automatically detect and identify compliant powered devices (PDs) and supply power to them via Ethernet cables. It can power wireless APs, network cameras, IP phones, building video door entry systems, and other PoE terminal devices via network cables, meeting the needs of network environments requiring high-density PoE power supply. It is suitable for hotels, campuses, parks, commercial complexes, supermarkets, banks, scenic spots, factory dormitories, and SMBs to build cost-effective networks.
TheJXCSW28GE4GFPM possesses L2+ management functions, supports IPv4 static routing, comprehensive security mechanisms, robust ACL/QoS policies, and rich VLAN features, making it easy to manage and maintain. It supports various network redundancy protocols including STP/RSTP/MSTP (<50ms convergence) and ERPS ring protocol (<20ms convergence), enhancing link backup and network reliability. In case of a unidirectional link failure, communication can be rapidly restored, ensuring uninterrupted transmission for critical communications. According to practical application needs, PoE power management, port traffic control, VLAN configuration, QoS, LACP, IGMP, DHCP, and other application services can be configured via Web, CLI, SNMP, Telnet, and other management methods.
Product Features
1.Single port PoE power up to 30W, af/at adaptive, widely compatible with various network terminals; supports PoE management, remote PoE port restart, and real-time power status viewing.
2.Combo uplink ports (copper & fiber), flexibly adapting to both Ethernet cable and fiber optic connections, suitable for various networking cascading and expansion scenarios, simplifying connectivity.
3.Full Gigabit high-speed transmission, guaranteed stable high-bandwidth performance; supports per-port rate and flow control; enables 10M/250-meter long-distance transmission, easily solving long-distance communication and power supply problems to meet diverse user needs.
4.Enterprise-grade high-bandwidth switching chip, high backplane bandwidth, large buffer, reducing network congestion.
5.Supports MAC address auto-learning and updating; supports Auto MDI/MDI-X.
6.Service ports support 4KV surge (lightning) protection, PoE short-circuit and overload protection, safer and more reliable operation.
7.Precision steel metal casing, shields interference, provides robust heat dissipation, sturdy, rust-resistant, and more durable.
Software Features
Powerful Service Capabilities
1.Supports 128 entries of IPv4 static routing; supports ARP protocol, up to 1024 entries.
2.Flexible port bandwidth and traffic configuration; optical port DDMI digital diagnostics function, facilitating refined network management.
3.Supports IEEE 802.1Q VLAN, Protocol-based VLAN, and QinQ VLAN; users can flexibly划分 VLANs as needed.
4.Supports QoS, three priority modes based on port, 802.1P, and DSCP, and four queue scheduling algorithms: Equ, SP, WRR, SP+WRR.
5.Supports ACL, implementing packet filtering by configuring matching rules, actions, and time permissions, providing flexible security access control policies.
6.Supports IGMP V1/V2 multicast protocol, supports IGMP Snooping V1/V2/V3, meeting the needs for multi-terminal HD video surveillance and video conference access.
7.Supports STP/RSTP/MSTP spanning tree protocols and ERPS rapid ring protection protocol, eliminating Layer 2 loops and achieving link backup.
8.Supports static aggregation and dynamic aggregation (LACP), effectively increasing link bandwidth, achieving load balancing and link backup, improving link reliability.
Comprehensive Security Features
1.Supports WEB interface user authentication.
2.Supports CPU protection, preventing attacks from large data streams targeting the switch itself.
3.Supports 802.1x authentication, remote RADIUS, TACACS+ authentication.
4.Hardware support for IP ACL, MAC ACL, ACL port filtering, MAC address binding, and port-based IP+MAC+Vlan+Port multi-element binding.
5.Supports DHCP Snooping v1/v2/v3, port isolation, and port broadcast storm suppression.
Convenient Operation and Maintenance
1.Supports diverse management and maintenance methods including Web management, CLI (Console, Telnet), and SNMP (V1/V2c/V3).
2.Supports encrypted management methods like HTTP/HTTPS and SSH for more secure management.
3.Supports firmware updates/upgrades via HTTP/TFTP, configuration file upload/download, and one-click system configuration restore.
4.Supports RMON, system logs, and port traffic statistics, facilitating network optimization and troubleshooting.
5.Supports LLDP, facilitating network management system queries and judgment of link communication status.
6.Supports CPU monitoring, memory monitoring, Ping detection, and cable detection.
Technical Specifications
Model No.: | JXCSW28GE4GFPM | |
Port Characteristics | ||
Fixed Ports | Downlink Ports | 24 10/100/1000Base-T RJ45 Ports |
Uplink Ports | 4 Combo Ports (10/100/1000Base-T RJ45 Ports + 4 100/1000M SFP Fiber Slots ) | |
Management Port | 1 Console Port (115200, 8, N, 1) | |
PoE Ports | Ports 1-24 support af/at standard PoE/PoE+, transmission distance 100-250 meters | |
Ethernet Port Characteristics | Ports 1-28: 10/100/1000M auto-negotiation, Full/Half duplex, Auto MDI/MDI-X | |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤250 meter) | |
Optical Port Characteristics | Gigabit SFP fiber interfaces, optical modules not included by default (optional single-mode/multi-mode, single-fiber/dual-fiber modules, LC/SC connectors) | |
Optical Fiber | Multi-mode: 850nm / 0～550M, 50μm/125μm & 62.5μm/125μm | |
Switching Chip Parameters | ||
Management Type | L2+ Management | |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T | |
CPU | 500MHz | |
DRAM | 1Gbits | |
FLASH | 256Mbits | |
Forwarding Mode | Store-and-Forward (Full Wire Speed) | |
Backplane Bandwidth | 56Gbps (Non-Blocking) | |
Forwarding Rate @64byte | 41.66Mpps | |
MAC Address Table | 8K | |
Packet Buffer Memory | 4.1Mbits | |
Jumbo Frame | 10Kbytes | |
Indicators | Power: PWR (Green); System: SYS (Green); Link/Activity: L/A (Green); PoE: PoE (Yellow); SFP: SFP (Green) | |
Reset Button | 1, press and hold for 6 seconds to restore factory defaults | |
MTBF | 100,000 hours | |
POE & Power Characteristics | ||
POE Ports | Ports 1-24 support IEEE802.3af/at standard POE/PoE+ | |
PoE Management | Supports per-port PoE On/Off & Restart, per-port PoE status display, real-time PoE power display | |
Power Pins | Default 1/2(+), 3/6(-) 4-pair power supply | |
Max PoE Power per Port | 30W, standard IEEE802.3af/at | |
Total Power / Input Voltage | 500W (AC100-240V) | |
Power Consumption | Standby: <20W; Full Load: <500W | |
Power Supply | Built-in AC switching power supply AC: 100～240V 50-60Hz 6.0A | |
Physical Specifications | ||
Operating Temp/Humidity | -20°C ~ +55°C; 5% ~ 90% RH non-condensing | |
Storage Temp/Humidity | -40°C ~ +75°C; 5% ~ 95% RH non-condensing | |
Dimensions (L*W*H) | 440*290*45mm | |
Net Weight / Gross Weight | <4.3kg / <4.8kg | |
Installation | Desktop, Rack Mount (1U) | |
Certifications & Warranty | ||
Surge Protection / Protection Rating | Port Surge Protection: 4KV 8/20us; Protection Rating: IP30 | |
Safety & Compliance | CE, FCC, RoHS, CCC | |
Warranty | 3 Years | |
Software Management Features | ||
Ports | Supports IEEE802.3x flow control (full duplex), back pressure flow control (half duplex) | |
IP Routing | Supports L2+ management functions | |
VLAN | Supports Port-based VLAN (4K), IEEE802.1q VLAN | |
Port Aggregation | Supports static aggregation and dynamic aggregation (LACP) | |
Loop Protection | Supports loop protection function | |
Multicast | Supports IGMP Snooping v1/v2/v3, supports up to 1024 multicast groups | |
Mirroring | Supports basic port bidirectional traffic mirroring | |
QoS | Supports priority based on port, 802.1P and DSCP/ToS; each port supports 8 output queues | |
ACL | Supports L2~L4 packet filtering, can match the first 80 bytes of packets; provides ACL definitions based on source MAC, destination MAC, source IP, destination IP, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. | |
Security Features | Supports user hierarchy management and password protection | |
DHCP | Supports DHCP Server | |
Management & Maintenance | Supports Web management, CLI (Console, Telnet), SNMP (V1/V2c/V3) and other diverse management and maintenance methods; Supports WEB management (HTTP/HTTPS) | |
System Requirements | Web Browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher | |
Packaging List
Packaging List | Item Name | Quantity | Unit |
24+4Combo Full Gigabit Managed POE Switch | 1 | piece | |
AC Power Cord | 1 | Piece | |
Mounting Ears | 1 | Pair | |
Quick Start Guide | 1 | Copy | |
Warranty Card & Certificate of Quality | 1 | Copy |
Ordering Information
Model No.: | Device Information | Standard PSU |
JXCSW28GE4GFPM | L2+ Managed 24 10/100/1000M Ports + | 500W |
