Model No.:

JXISW8GE2GFPM

Port Characteristics

Fixed Ports

Downlink Ports

8 x 10/100/1000Base-T RJ45 Ethernet Ports

Uplink Ports

2 x 100/1000Base-X SFP Fiber Ports

PoE Ports

Ports 1-2 support af/at/bt standard PoE power; Ports 3-8 support af/at standard PoE power; Supports 250-meter long-distance transmission

Power Interface

1 pair V+, V- Redundant DC Power Interface (4P Phoenix Terminal)
1 x DC5521 Power Jack

Ethernet Port Characteristics

10/100/1000M auto-negotiation, Full/Half duplex MDI/MDI-X auto-negotiation

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤250 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)

Fiber Port Characteristics

Gigabit SFP Fiber Interface, default without optical modules, need to be purchased separately (Optional Single-mode/Multi-mode, Single-fiber/Dual-fiber modules, LC/SC)

Optical Fiber

Multi-mode: 850nm / 0~550M, 50μm/125μm & 62.5μm/125μm
Single-mode: 1310nm / 0~40KM, 1550nm / 0~120KM, 9.5μm/125μm

DIP Switch Functions

Switch 1: RSTP

Set to "ON" to enable, enabling RSTP ring function on fiber ports, default "OFF"

Switch 2: VLAN

Set to "ON" to enable, enabling power port isolation function, default "OFF"

Switch 3: PoE Watchdog

Set to "ON" to enable, enabling PoE auto-reboot function for power ports, default "OFF"

Switch 4: WEB Management

Set to "ON" to enable WEB management function, default "ON". Set to "OFF" if WEB management is not required.

Special Note

Switch 4 cannot be enabled simultaneously with Switches 1-3.
When Switch 4 is set to "OFF", the functions of Switches 1-3 take effect.

Switch Chip Parameters

Management Type

WEB Management

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3x Flow Control
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.3af DTE Power via MDI
IEEE 802.3at DTE Power via MDI
IEEE 802.3bt DTE Power via MDI

Forwarding Mode

Store-and-Forward (Full Wire Speed)

Backplane Bandwidth

20Gbps (Non-Blocking)

Packet Forwarding Rate @64byte

14.88Mpps

MAC Address Table

4K

Packet Buffer Memory

2Mb

Jumbo Frame

9.2KB

LED Indicators

Power: PWR (Green); Ethernet Ports: 1-8 (Green); PoE Ports: 1-8 (Yellow); Fiber Ports: 9-10 (Green)

Reset Button

1, Press and hold for 6 seconds to restore factory defaults

MTBF

Complies with Industrial Grade Standard, Mean Time Between Failure > 300,000 hours

Management Features

Port Management

Supports port status display
Supports port traffic statistics
Supports port duplex/negotiation speed configuration
Supports IEEE802.3x flow control configuration (Full duplex)
Supports EEE energy saving and Green Ethernet features
Supports Jumbo Frame setting

VLAN

Supports Port-based IEEE802.1Q VLAN configuration (4K entries)
Supports Port VLAN ID definition, port member assignment, port tag setting

Link Aggregation

Supports static aggregation, max 8 groups

Ring Network Function

Supports RSTP ring protocol, supports loop protection and loop detection functions

Multicast

Supports IGMP multicast group static configuration

Mirroring

Supports basic port traffic mirroring

QoS

Supports Diff-Serv QoS
Each port supports 8 output queues
Supports 802.1p/DSCP priority mapping
Supports priority marking Mark/Remark

Security Features

Supports broadcast storm suppression
Supports port rate limiting
Supports port isolation
Supports MAC address binding control, lookup, and static MAC black/white list settings

DHCP

Supports DHCP Snooping V1/V2/V3

Management and Maintenance

Supports WEB management (Supports HTTPS)
Supports one-key reset
Supports port statistics
Supports port cable fault and distance detection
Supports firmware online upgrade, configuration backup/restore
Supports remote scheduled reboot, manual reboot

PoE and Power Characteristics

PoE Ports

Ports 1-2 support IEEE802.3af/at/bt standard, Ports 3-8 support IEEE802.3af/at standard PoE power

PoE Management

Per port PoE On/Off
Per port PoE real-time power display and monitoring

Power Pairs

Default Ports 1-2: 1/2/4/5(+), 3/6/7/8(-) 8-wire powering; Ports 3-8: 1/2(+), 3/6(-) 4-wire powering

Max PoE Power per Port

Ports 1-2 Max 90W, Standard IEEE802.3af/at/bt; Ports 3-8 Max 30W, Standard IEEE802.3af/at

Input Voltage & Interface

48-57VDC wide voltage; 4pin industrial Phoenix terminal + 1 x DC5521 jack, supports reverse connection protection

Total Power Consumption

Standby Power: <5W; Full Load Power: <120W-240W

Included Power Supply

None, optional industrial grade power supply 52V/120W-240W

Physical Specifications

Operating Temperature/Humidity

-40～+75°C; 5%～90% RH non-condensing

Storage Temperature/Humidity

-40～+85°C; 5%～95% RH non-condensing

Product/Package Dimensions

151*128*49mm / 230*185*70mm

Net Weight / Gross Weight

<0.98kg / <1.15kg

Mounting

DeJXtop, 35mm DIN Rail Mounting

Certifications & Warranty

Lightning Protection / Protection Rating

Port Lightning Protection: 6KV
Protection Rating: IP40
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMC:
IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC(EN)61000-4-3(RS): 10V/m (80～1000MHz)
IEC(EN)61000-4-4(EFT): Ethernet Port: ±4kV CM / ±2kV DM
IEC(EN)61000-4-5(Surge): Ethernet Port: ±4kV CM / ±2kV DM
IEC(EN)61000-4-6(CS): 3V (10kHz～150kHz), 10V (150kHz～80MHz)
IEC(EN)61000-4-16(CM): 30V cont. 300V, 1s
IEC(EN)61000-4-8(PFMF)
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6

ESD Protection

Contact Discharge: 8KV; Air Discharge: 15KV

Safety Certifications

CE, FCC, RoHS

Warranty Period

5 Years

Packing List

Switch

1 piece

Power Supply

None

User Manual

1 copy

Warranty Card & Certificate of Conformity

1 copy

Model No.:

Device Description

Optional Power Supply

JXISW8GE2GFPM

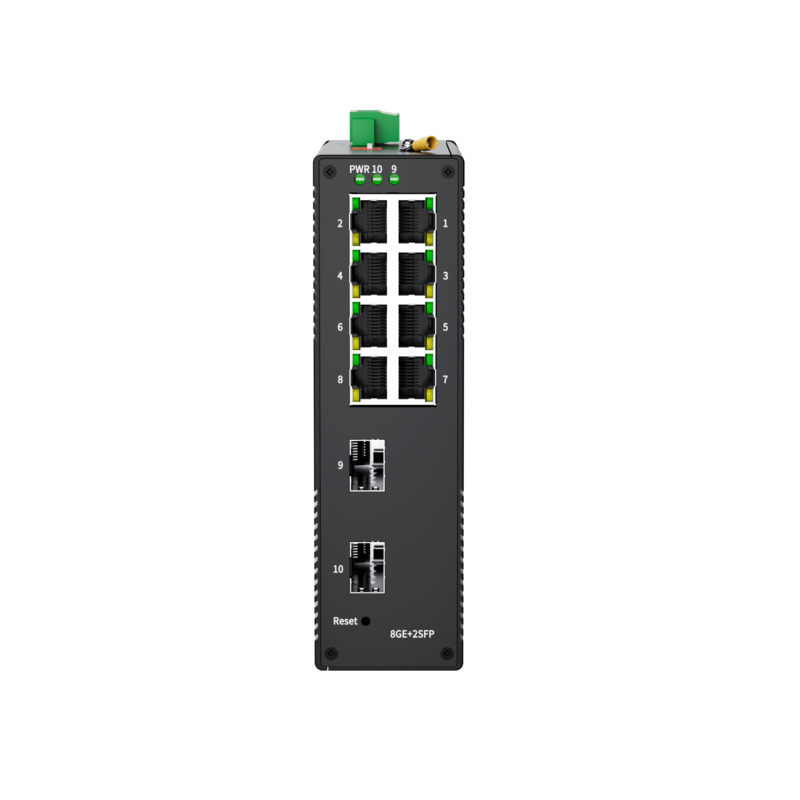

WEB Managed 8 x 10/100/1000M Ethernet Ports + 2 x 100/1000M Uplink SFP Fiber Ports Industrial PoE Switch. Ports 1-2 support IEEE 802.3af/at/bt standard, Ports 3-8 support IEEE 802.3af/at international standard. Supports one-key DIP switch for RSTP, VLAN, and WEB management functions. Supports triple DC redundant power input (4pin industrial Phoenix terminal + DC5521 power jack), reverse connection protection. DIN rail mounting, IP40 protection.

DC48-57V

Notes:
1. This product does not include a power supply or SFP optical modules by default. Please refer to accessory product information if needed.
2. The transmission distance of optical modules depends on the module type; please confirm with sales personnel before ordering.
3. The default optical module interface is LC; please confirm with sales personnel if SC interface is required before ordering.

Name

Model

Description

Unit

1.25G Optical Module

JX1000-1.25G-SM1310/1550-SC

SFP Optical Module, 1.25G, Single-mode Single-fiber SC Interface, Transmission Distance 3/20/40/60/80/100/120km optional, supports DDM, hot-pluggable.

Pair

JX1000-1.25G-SM1310/1550-LC

SFP Optical Module, 1.25G, Single-mode Single-fiber LC Interface, Transmission Distance 3/20/40/60/80/100/120km optional, supports DDM, hot-pluggable.

Pair

JX1000-1.25G-LX-SM1310

SFP Optical Module, 1.25G, Single-mode Dual-fiber LC Interface, Transmission Distance 3/20/40/60/80/100/120km optional, supports DDM, hot-pluggable.

Piece

JX1000-1.25G-SX-MM850

SFP Optical Module, 1.25G, Multi-mode Dual-fiber LC Interface, Transmission Distance 550M, supports DDM, hot-pluggable.

Piece

1.25G Optical Module

JX1000-1.25G-SM1310/1550-SC

SFP Optical Module, 1.25G, Single-mode Single-fiber SC Interface, Transmission Distance 3/20/40/60/80/100/120km optional, supports DDM, hot-pluggable.

Pair

60W Industrial DIN Rail Power Supply

JX1000-DP60W-DC

Rated Input Voltage: AC 100V~240V 50-60Hz, 1.5A
Rated Output Voltage: 48V/1.25A
Operating Temperature: -20°C ~ +65°C

Piece

65W Power Adapter

JX1000-AP65W-DC

Rated Input Voltage: AC 100V~240V 50-60Hz, 1.5A
Rated Output Voltage: 52V/1.25A
Operating Temperature: -20°C ~ +65°C

Piece

96W Power Adapter

JX1000-AP96W-DC

Rated Input Voltage: AC 100V~240V 50-60Hz, 1.85A
Rated Output Voltage: DC52V/1.85A
Operating Temperature: -20°C ~ +65°C

Piece

120W Industrial DIN Rail Power Supply

JX1000-DP120W-DC

Rated Input Voltage: AC 100V~240V 50-60Hz, 2.3A
Rated Output Voltage: DC48V/2.5A
Operating Temperature: -20°C ~ +65°C

Piece

240W Industrial DIN Rail Power Supply

JX1000-DP240W-DC

Rated Input Voltage: AC 100V~240V 50-60Hz, 4.0A
Rated Output Voltage: DC48V/5A
Operating Temperature: -20°C ~ +65°C

Piece
