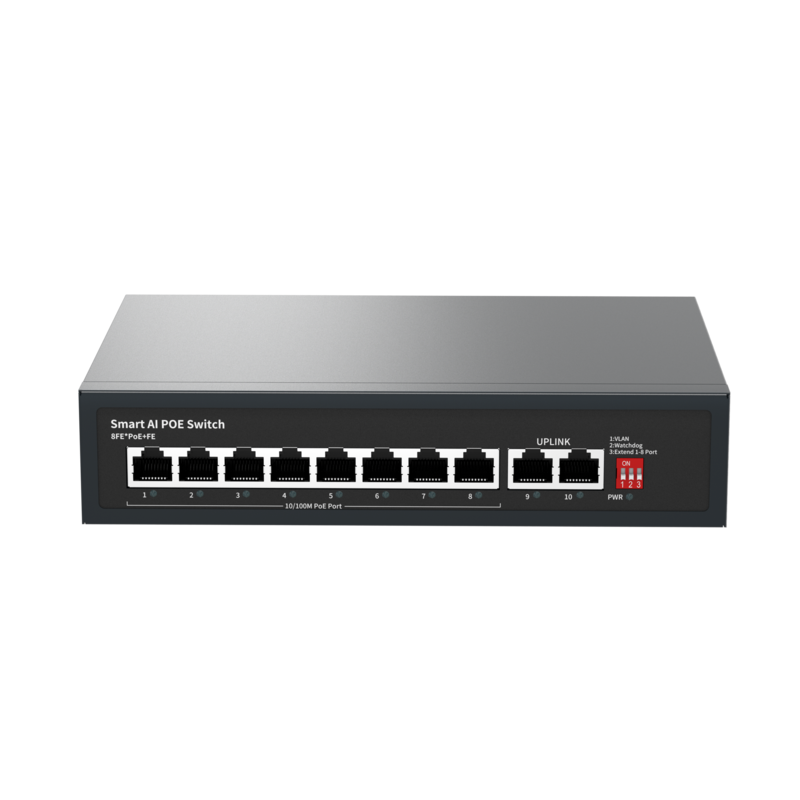

100M 8+2 Port Smart PoE Switch
Product Overview
The JX0802P-AI series is a non-managed smart PoE switch that utilizes high-performance enterprise-grade network switching ICs and standard PoE chips. It features 8× 10/100M PoE ports + 2× 10/100M uplink Ethernet ports, offering seamless connectivity for 10/100 Mbps networks.
·
Ports 1–8 support IEEE 802.3af/at PoE standards, with up to 30W per port.
·
All ports include 4KV surge protection.
·
·
One-key VLAN, PoE Watchdog (auto-recovery), and 200m long-distance transmission AI modes ensure efficient deployment and reduced O&M costs.
·
Ideal for surveillance, smart cities, schools, campuses, hotels, banks, hospitals, government offices, scenic areas, retail, and SMBs.
Plug-and-play, no configuration required.
Technical Specifications
Category | Details |
Model | JX0802P-AI |
Port Configuration | |
- Downlink Ports | 8× 10/100Base-TX RJ45 (PoE) |
- Uplink Ports | 2× 10/100Base-TX RJ45 |
PoE Support | Ports 1–8 support IEEE 802.3af/at; 200m transmission distance |
Port Features | 10/100M auto-negotiation, Full/Half-duplex, MDI/MDI-X |
Cable Requirements | Cat3/4/5 (≤100m for 10BASE-T); Cat5+ (≤100m for 100BASE-TX) |
DIP Switch Modes | |
- Position 1 | Port VLAN isolation |
- Position 2 | PoE Watchdog (auto-restart) |
- Position 3 | 1–8 ports long-distance mode (200m) |
Switching Chip | |
- Management Type | Non-managed |
- Network Protocols | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3af/at |
- Forwarding Mode | Store-and-forward |
- Backplane Bandwidth | 2.0 Gbps |
- Packet Forwarding Rate | 1.48 Mpps (64-byte packets) |
- MAC Address Table | 2K |
- Packet Buffer | 1.25 Mb |
- Jumbo Frame | 1536 Bytes |
LED Indicators | PWR (Green), Port 1–10 (Green) |
MTBF | 100,000+ hours |
PoE & Power Features
Feature | Details |
PoE Standard | IEEE 802.3af/at |
PoE Pins | 1/2 (+), 3/6 (–) 4-wire power |
Max PoE per Port | 30W |
Total Power Budget | 120W (AC 100–240V) |
Power Consumption | Standby: <3W; Full load: <120W |
Power Supply | Built-in switching power supply: AC 100–240V, 50–60Hz, 2.0A |
Physical Specifications
Parameter | Details |
Operating Environment | -20°C to +55°C, 5%–90% RH (non-condensing) |
Storage Environment | -40°C to +75°C, 5%–95% RH (non-condensing) |
Dimensions (L×W×H) | 202×140×44 mm (device) / 230×185×70 mm (package) |
Weight | Net: <0.67 kg; Gross: <0.8 kg |
Installation | Desktop or wall-mounted |
Certifications & Warranty
Standard | Details |
Surge Protection | 4KV (ports) |
Protection Rating | IP30 |
ESD Protection | Contact: 8KV; Air discharge: 15KV |
Certifications | CE, FCC, RoHS |
Warranty | 1 year |
Package Contents
1× JX0802P-AI switch
1× Power cable
1× User manual
1× Warranty card & certificate
Ordering Information
Model No.: | Description |
JX0802P-AI | Non-managed 8× 10/100M PoE ports + 2× 10/100M uplink ports, IEEE 802.3af/at, AI features (VLAN, Watchdog, 200m transmission), built-in PSU (AC 100–240V). |
