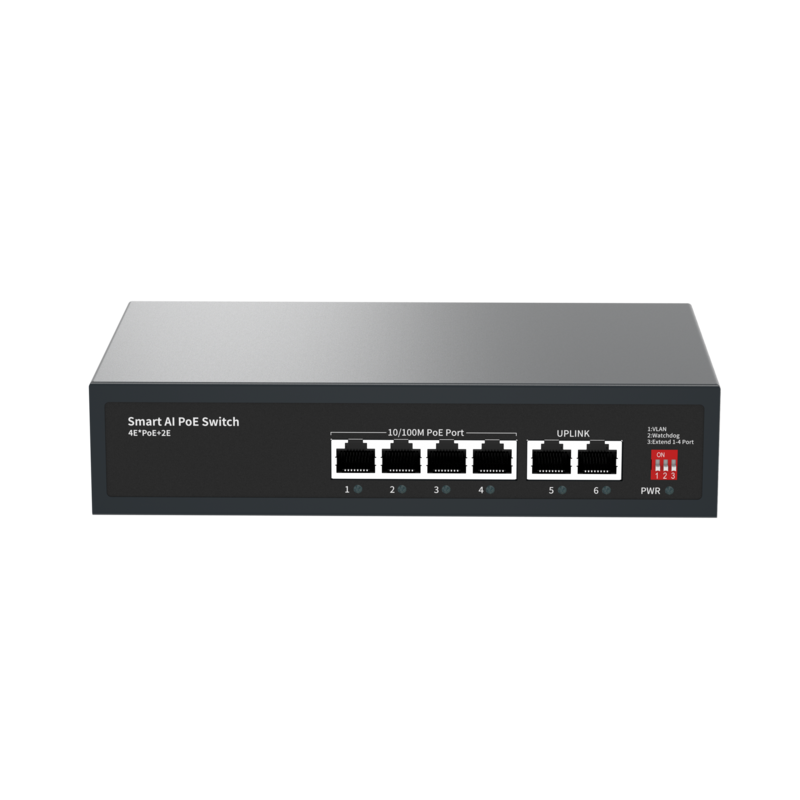

4+2 Port 10/100M Smart PoE Switch
Product Overview
The JXF0402P series is a non-managed Smart PoE Switch. It utilizes high-performance non-blocking enterprise-grade network switch IC and standard PoE chips. It has 4 Fast Ethernet PoE ports + 2 Fast Ethernet uplink ports, providing seamless connectivity for 10/100M Ethernet networks. Ports 1-4 support IEEE 802.3af/at standard PoE power supply, single-port PoE power output of up to 30W. All service ports offer 4kV surge protection. The switch incorporates multiple AI features, including one-touch Port VLAN, PoE Watchdog for automatic fault recovery, and 200-meter extended distance transmission. These features ensure efficient network deployment, reduce operational costs, and make it ideal for building cost-effective networks in scenarios such as security surveillance, safe cities, schools, campuses, hotels, banks, hospitals, government/enterprise offices, scenic areas, shopping malls, and small-to-medium businesses.
As a non-managed model, it is truly plug-and-play, requiring no configuration for simple and convenient use.
Technical Specifications
Parameter | Specification |
Model | JXF0402P |
Port Features | |
Fixed Ports | Downlink Ports: 4 x 10/100Base-TX RJ45 Ports |
Uplink Ports: 2 x 10/100Base-TX RJ45 Ports | |
PoE Ports: Ports 1-4 support IEEE 802.3af/at PoE, extended distance 200m | |
Port Characteristics | 10/100M Auto-negotiation, Full/Half Duplex, Auto MDI/MDIX |
Twisted Pair Transmission | 10BASE-T: Cat 3,4,5 UTP (≤100 meters) |
100BASE-TX: Cat 5 or later UTP (≤100 meters) | |
DIP Switch Functions | Switch 1: Port VLAN Function |
Switch 2: PoE Watchdog | |
Switch 3: Ports 1-4 Extended Distance (200m) | |
Note: All function switches default to "OFF". Set to "ON" to enable. Functions can be used individually. | |
Switch Chip Parameters | |
Management Type | Non-managed |
Network Protocols | IEEE 802.3 10BASE-T; IEEE 802.3i 10Base-T; |
IEEE 802.3u 100Base-TX; | |
IEEE 802.3x Flow Control; | |
IEEE 802.3af DTE Power via MDI; | |
IEEE 802.3at DTE Power via MDI; | |
Forwarding Mode | Store-and-Forward (Full Wire Speed) |
Backplane Bandwidth | 1.2Gbps (Non-blocking) |
Packet Forwarding Rate @64byte | 0.89 Mpps |
MAC Address Table | 2K entries |
Packet Buffer Memory | 1.25Mb |
Jumbo Frame Support | 1536 Bytes |
LED Indicators | Power: PWR (Green); Port Status: 1-6 (Green) |
MTBF | 100,000+ Hours |
PoE & Power Features | |
PoE Ports | Ports 1-4 support IEEE 802.3af/at standard PoE |
Power Pins | Default: 1/2(+), 3/6(-) (4-pair powering) |
Max. PoE Power per Port | 30W, compliant with IEEE 802.3af/at |
Total PoE Power / Input Voltage | 65W (AC 100-240V) |
Power Consumption | Standby: <3W; Full Load: <65W |
Power Supply | Built-in Switching Power Supply, AC: 100～240V 50-60Hz, 1.0A |
Physical Specifications | |
Operating Temp/Humidity | -20°C to +55°C; 5% to 90% RH (non-condensing) |
Storage Temp/Humidity | -40°C to +75°C; 5% to 95% RH (non-condensing) |
Dimensions (L x W x H) | Unit: 200 x 118 x 44mm / Package: 230 x 185 x 70mm |
Net Weight / Gross Weight | <0.58kg / <0.7kg |
Installation | Desktop, Wall-mountable |
Certification & Warranty | |
Surge Protection / IP Rating | Port Surge Protection: 4kV; IP Rating: IP30 |
ESD Protection | Contact Discharge: 8kV; Air Discharge: 15kV |
Safety Certifications | CE, FCC, RoHS |
Warranty Period | 1 Year |
Package Contents | |
Switch | 1 piece |
Power Cord | 1 Piece |
User Manual | 1 Copy |
Warranty Card & Certificate | 1 Copy |
Ordering Information
Device Name | Device Information | Standard PSU |
JXF0402P | Non-managed Fast Ethernet Switch with 4 x 10/100M PoE Ports + 2 x 10/100M Uplink Ports. Ports 1-4 support IEEE 802.3af/at standard, intelligent PoE detection. Features include: Port VLAN isolation via DIP switch, PoE Watchdog (auto-reboot), extended distance (200m), and other AI functions. Built-in power supply. | AC 100-240V |
