Unmanaged 8x10/100M RJ45 ports Industrial PoE switch
Product Overview
The JX8FEIP series is an unmanaged industrial PoE switch featuring 8 Fast Ethernet ports. Ports 1-8 support IEEE 802.3af/at standard PoE power supply, with a maximum PoE power of 30W per port. As a PoE Power Sourcing Equipment (PSE), it can automatically detect and recognize compliant Powered Devices (PDs) and supply power to them via Ethernet cables. It can power PoE terminal devices such as industrial wireless APs, network cameras, industrial IP phones, PLC modules, and industrial sensors over Ethernet cables. Designed for industrial networking environments requiring high-density PoE power supply, it is suitable for building cost-effective, stable, and reliable communication networks in industrial scenarios including intelligent transportation, rail transit, power industry, mining, petroleum, maritime, metallurgy, and green energy construction.
The JX8FEIP strictly adheres to industrial-grade design and material standards. Its aluminum alloy casing enhances heat dissipation and provides excellent adaptability to harsh industrial field environments (including mechanical stability, climatic environmental adaptability, and electromagnetic environmental adaptability). All service ports support 6KV ESD surge protection and feature an IP40 protection rating. It supports dual DC redundant power input, comes with third-party test reports and network access licenses, offers stable performance, and includes an extended 5-year warranty. It is an ideal choice for industrial communication transmission and networking.
Technical Specifications
Parameter | Specification | |
Model No.: | JX8FEIP | |
Port Characteristics | ||
Fixed Ports | Downlink Ports | 8x 10/100Base-T RJ45 Ethernet Ports |
Uplink Ports | None | |
PoE Ports | Ports 1-8 support IEEE 802.3af/at standard PoE power supply | |
Power Interface | 1x 4-pin Industrial Phoenix Terminal + 1x DC5521 Power Jack | |
Ethernet Port Features | 10/100M auto-negotiation, Full/Half duplex, MDI/MDI-X auto-sensing | |
Twisted Pair Transmission | 10BASE-T: Cat 3,4,5 UTP (≤100 meters) | |
100BASE-TX: Cat 5 or later UTP (≤100 meters) | ||
Switching Chip Parameters | ||
Management Type | Unmanaged | |
Network Protocols | IEEE 802.3 10BASE-T; IEEE 802.3i 10Base-T; | |
IEEE 802.3u 100Base-TX; IEEE 802.3u 100Base-FX; | ||
IEEE 802.3x Flow Control; | ||
Forwarding Mode | Store-and-Forward (Wire Speed) | |
Backplane Bandwidth | 1.6Gbps (Non-Blocking) | |
Packet Forwarding Rate @64byte | 1.19Mpps | |
MAC Address Table | 2K | |
Packet Buffer | 1.25Mb | |
Jumbo Frame | 1536 Bytes | |
LED Indicators | Power: PW (Green); Ports 1-8: LNK/ACT (Green) | |
MTBF | ≥300,000 hours | |
PoE & Power Characteristics | ||
PoE Ports | Ports 1-8 support IEEE 802.3af/at standard PoE power supply | |
Power Pins | Default 1/2(+), 3/6(-) (4-pair powering supported) | |
Max. PoE Power per Port | 30W, IEEE 802.3af/at standard | |
Input Voltage & Interface | 48-57VDC wide range input; | |
1x 4-pin Industrial Phoenix Terminal + 1x DC5521 Power Jack; Reverse polarity protection | ||
Total Power Consumption | Standby Power: <4W; Full Load Power: <120-240W | |
Power Supply | Not included; Optional industrial-grade power supply 52V/120-240W available | |
Physical Specifications | ||
Operating Temp/Humidity | -40°C to +75°C; 5% to 90% RH non-condensing | |
Storage Temp/Humidity | -40°C to +85°C; 5% to 95% RH non-condensing | |
Product/Package Dimensions | 142*116*48mm / 235*188*70mm | |
Net/Gross Weight | <0.60kg / <0.77kg | |

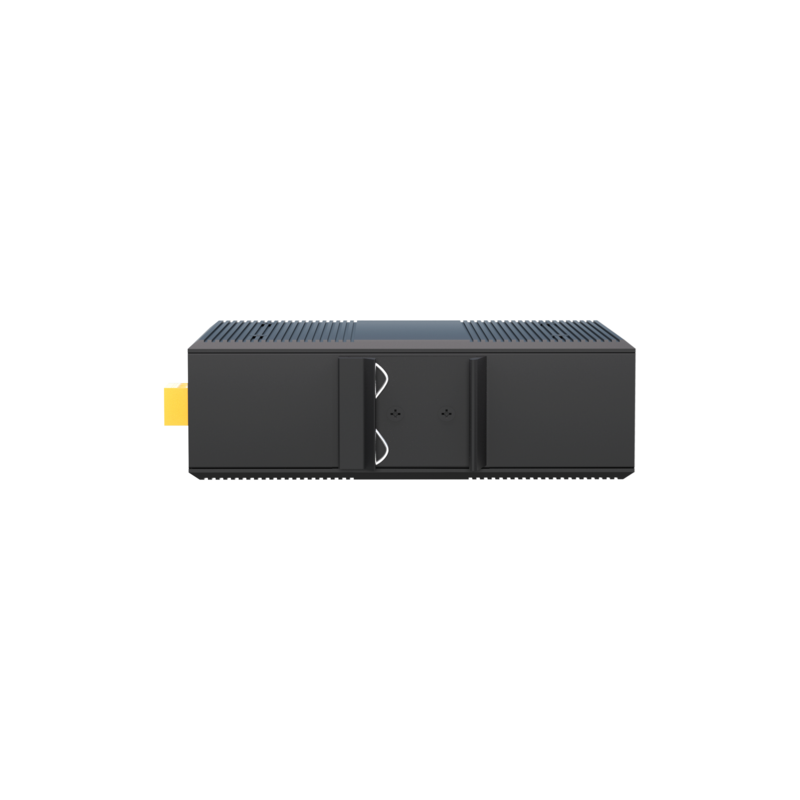

Installation | Desktop or 35mm DIN Rail Mounting | |
Cooling Method | Natural convection via aluminum alloy housing; Fanless, silent design | |
Certifications & Warranty | ||
EMI/EMC Immunity | ESD (IEC 61000-4-2) Level 4 (8kV Contact / 15kV Air) | |
RS (IEC 61000-4-3) Level 3 (10V/m) | ||
EFT (IEC 61000-4-4) Level 3 (1kV/5kHz Power, 0.5kV/5kHz Signal) | ||
CS (IEC 61000-4-6) Level 3 (10V/m) | ||
PFMF (IEC 61000-4-8) Level 4 (30A/m) | ||
Surge (IEC 61000-4-5) Level 4+ (6kV CM/2kV DM Port, 4kV CM/2kV DM Power) | ||
DIP (IEC 61000-4-11) Level 3 (10V) | ||
Lightning Protection / IP Rating | Port Lightning Protection: 6KV; Protection Rating: IP40 | |
ESD Protection | Contact Discharge: 8kV; Air Discharge: 15kV | |
Safety Certifications | CE, FCC, RoHS | |
Warranty | 5 Years | |
Package Contents | ||
Device | 1 piece | |
Power Supply | Not included | |
User Manual | 1 copy | |
Warranty Card & Certificate | 1 copy | |
Ordering Information
Device Name | Device Information | Optional Power Supply |
JX8FEIP | Unmanaged 8-Port 10/100M Industrial PoE Switch. Ports 1-8 support IEEE 802.3af/at standards. External 4-pin Industrial Phoenix terminal power input, reverse polarity protection. DIN rail mounting. IP40 rated. | DC48-57V Input Required |
Note: This product does not include a power supply by default. Please refer to the accessory product information for optional power supplies.
Accessories (Optional Power Supplies)
Name | Model | Description | Unit |
60W DIN Rail Power | JX1000-DP60W-DC | For POE industrial switch series. Rated Input: AC 100V~240V 50-60Hz, 1.0A. Rated Output: 48V/1.25A. Operating Temp: -30°C to +70°C. | Piece |
120W DIN Rail Power | JX1000-DP120W-DC | For POE industrial switch series. Rated Input: AC 100V~240V 50-60Hz, 2.0A. Rated Output: 48V/2.5A. Operating Temp: -30°C to +70°C. | Piece |
240W DIN Rail Power | JX1000-DP240W-DC | For POE industrial switch series. Rated Input: AC 100V~240V 50-60Hz, 4.0A. Rated Output: 48V/5.0A. Operating Temp: -30°C to +70°C. | Piece |
65W Power Adapter | JX1000-AP65W-DC | For POE industrial switch series. Rated Input: AC 100V~240V 50-60Hz, 1.0A. Rated Output: 52V/1.25A. Operating Temp: -20°C to +65°C. | Piece |
96W Power Adapter | JX1000-AP96W-DC | For POE industrial switch series. Rated Input: AC 100V~240V 50-60Hz, 1.0A. Rated Output: 52V/2.0A. Operating Temp: -20°C to +65°C. | Piece |
