SFP to Ethernet Switch

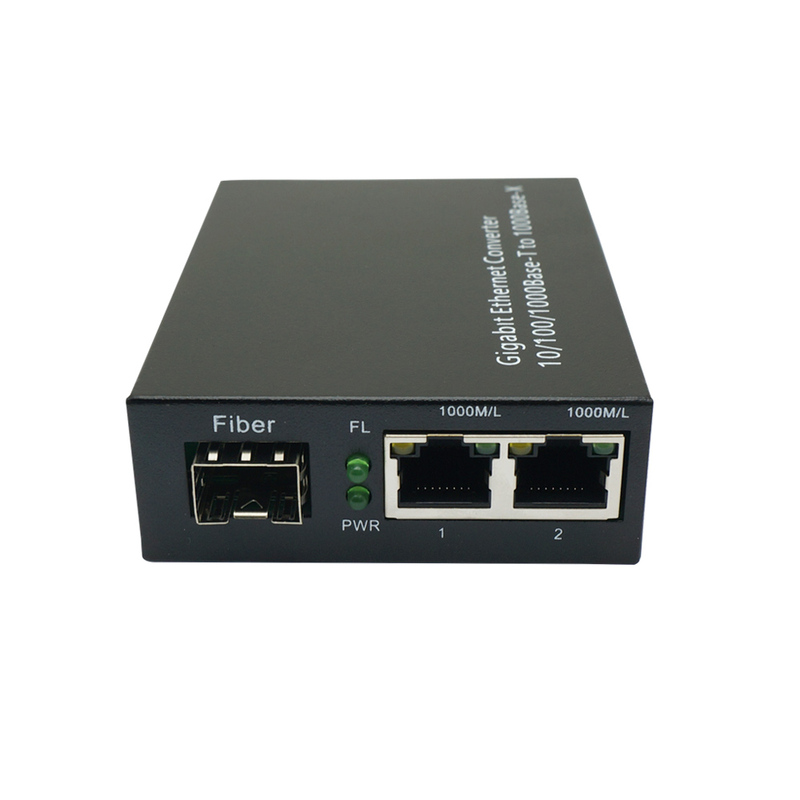

This SFP to Ethernet Switch makes transmission between UTP Copper cables and Slot SFP (Small Form-Factor Plug-gable) transceivers. It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via Slot cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straight forward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.
Features
* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
* Hot Pluggable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Optional function: VLAN 802.1Q
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Stable performance more than 50 thousands hours with fault-free.
* Interface: RJ-45 connector / SFP Slot
* In conformity with safety code of FCC, CE and RoHS.
Specifications
Optical Interface (SFP) | Connector | SFP LC/SC |
Data Rate | 100Mbps, 1000Mbps | |
Duplex Mode | Full duplex | |
Slot | MM 50/125um,62.5/125um SM 9/125um | |
Distance | 100Mbps: MM 550M/2km,SM 20/40/60/80/100/120km 1000Mbps: MM 550m/2km,SM 20/40/60/80/100/120/140km | |
Wavelength | MM 850nm,1310nm SM 1310nm,1550nm WDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side) WDM Tx1490/Rx1550nm(A side),Tx1550/Rx1490nm(B side) | |
UTP Interface | Connector | RJ45 Port |
Data Rate | 10/100Mbps, 10/100/1000Mbps | |
Duplex Mode | Half/full duplex | |
Cable | Cat5,Cat6 | |
Power Input | Adapter Type | DC5V |
Power Built-in Type | AC100~240V | |
Power Consumption | ＜3W | |
Temperature | 0~50℃ Operating; -40~70℃ Storage | |
Humidity | 5~95%(no condensing) | |
MTBF | ≥10.0000h | |
Certification | CE,FCC,RoHS | |
Application
* Extend your Ethernet connection up to 0~120km away using Slot optics
* Creates an economical Ethernet-Slot/copper-Slot link for connecting remote sub-networks to larger Slot optic networks/backbones
* Converts Ethernet to Slot, Slot to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network.
Order Information
Part Number | Description |
JX-MCSFP-FE | 10/100Mbps 1SFP Slot and 1RJ45 Port |
JX-918SFP-FE | 10/100Mbps 1SFP Slot and 8RJ45 Port |
JX-928SFP-FE | 10/100Mbps 2SFP Slot and 8RJ45 Port |
JX-MCSFP-GE | 10/100/1000Mbps 1SFP Slot and 1RJ45 Port |
JX-912SFP-GE | 10/100/1000Mbps 1SFP Slot and 2RJ45 Port |
JX-914SFP-GE | 10/100/1000Mbps 1SFP Slot and 4RJ45 Port |
JX-922SFP-GE | 10/100/1000Mbps 2SFP Slot and 2RJ45 Port |
JX-924SFP-GE | 10/100/1000Mbps 2SFP Slot and 4RJ45 Port |
JX-918SFP-GE | 10/100/1000Mbps 1SFP Slot and 8RJ45 Port |
JX-928SFP-GE | 10/100/1000Mbps 2SFP Slot and 8RJ45 Port |
JX-981SFP-GE | 10/100/1000Mbps 8SFP Slot and 1RJ45 Port |
Note :
1. Above part numbers haven't been shown the transmission distance , you need tell us as per your need when you order or inquire.
2. The RJ45 ports can be 2 /4 /8 ports , please tell us how many you need when you order or inquire.
3. The SFP slots can be 1 slot or 2 slots or 4 slots or 8 slots ,please tell us how many you need when you order or inquire.
